Gemini Smart PCB

Gemini Smart PCB

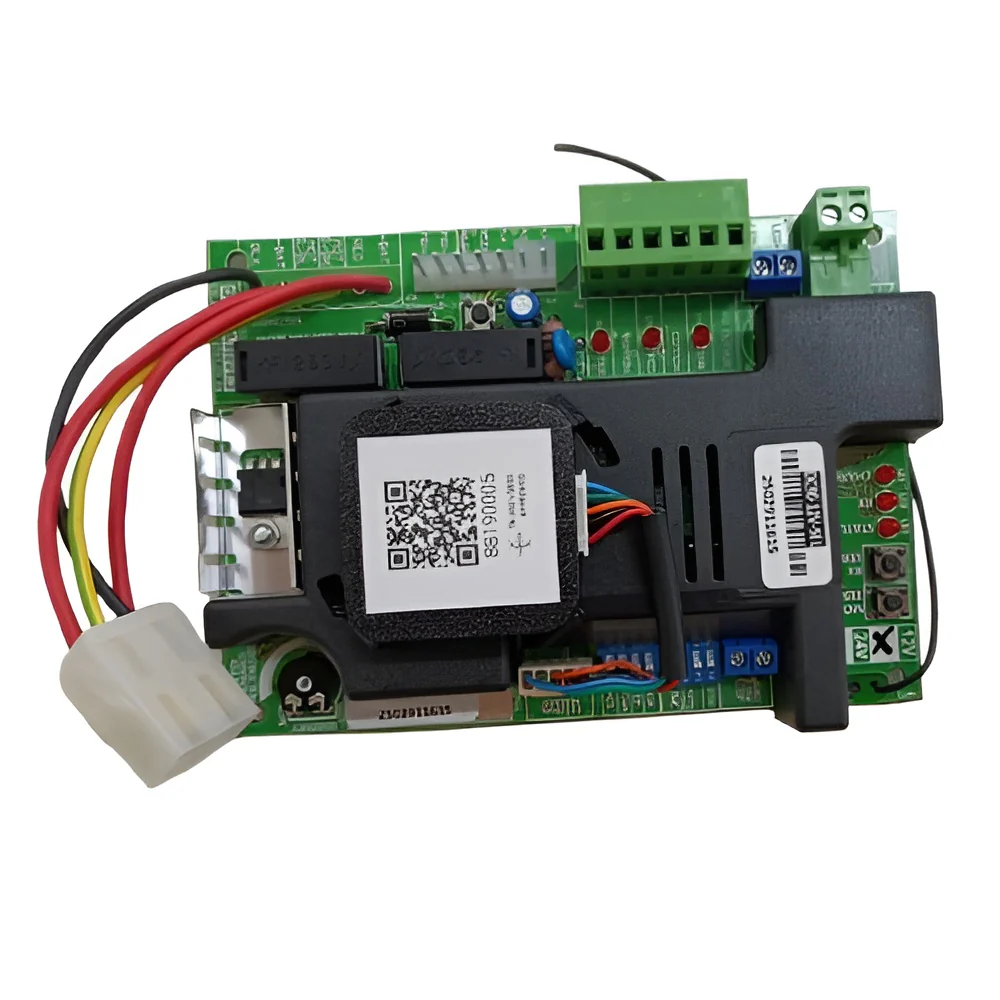

The Gemini Smart PCB is the electronic control board that powers Gemini’s Smart sliding gate motors, swing gate operators, and garage automation systems. Acting as the central processor, it manages every function of the motor, from movement control to safety features.

 Core Functions

• Motor Control – The PCB directs the motor’s speed, force, and travel direction, ensuring smooth gate operation.

• Remote Programming – Users can easily program and store multiple remotes for secure wireless control.

• Safety Integration – It connects to safety beams, loop detectors, and other accessories to protect vehicles and pedestrians.

• Auto-Close & Partial Open – Installers can set custom auto-close timers or activate pedestrian-only opening.

• Obstacle Detection – The board monitors for resistance and immediately reverses or stops the motor if the gate hits an obstruction.

 Technical Features

• Microprocessor-based design delivers consistent performance and reliability.

• Available in 12V, 24V DC, and 220V AC versions depending on the automation model.

• Supports battery backup systems for uninterrupted use during power outages.

• Diagnostic LEDs display status and fault codes for quick troubleshooting.

• Adjustable motor force and speed settings give flexibility for different gate sizes.

• Inputs allow easy integration with push buttons, GSM modules, or keypads.

 Applications

• Gemini sliding gate motors (12V and 24V Smart series).

• Gemini swing gate operators.

• Gemini garage door automation systems.

 Maintenance and Common Issues

The PCB works reliably when installed in a dry, protected housing. However, power surges can damage components, and moisture exposure can cause corrosion. If remotes fail to program or the gate does not move, check for faulty relays or blown fuses before replacing the board.
